LockEngine B20

Face & Fingerprint Glass Door Lock

Main Features

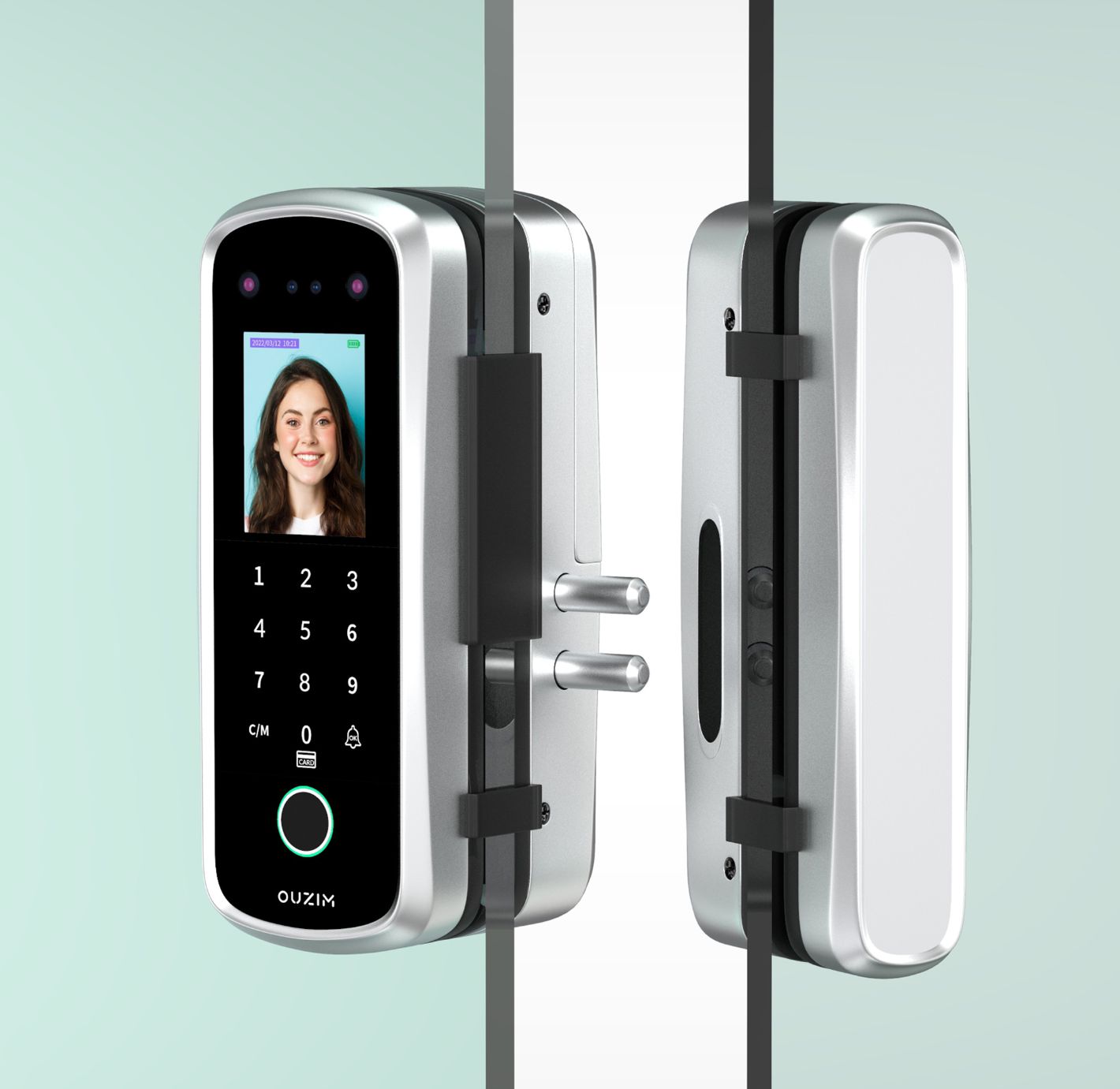

ouzim B20 open

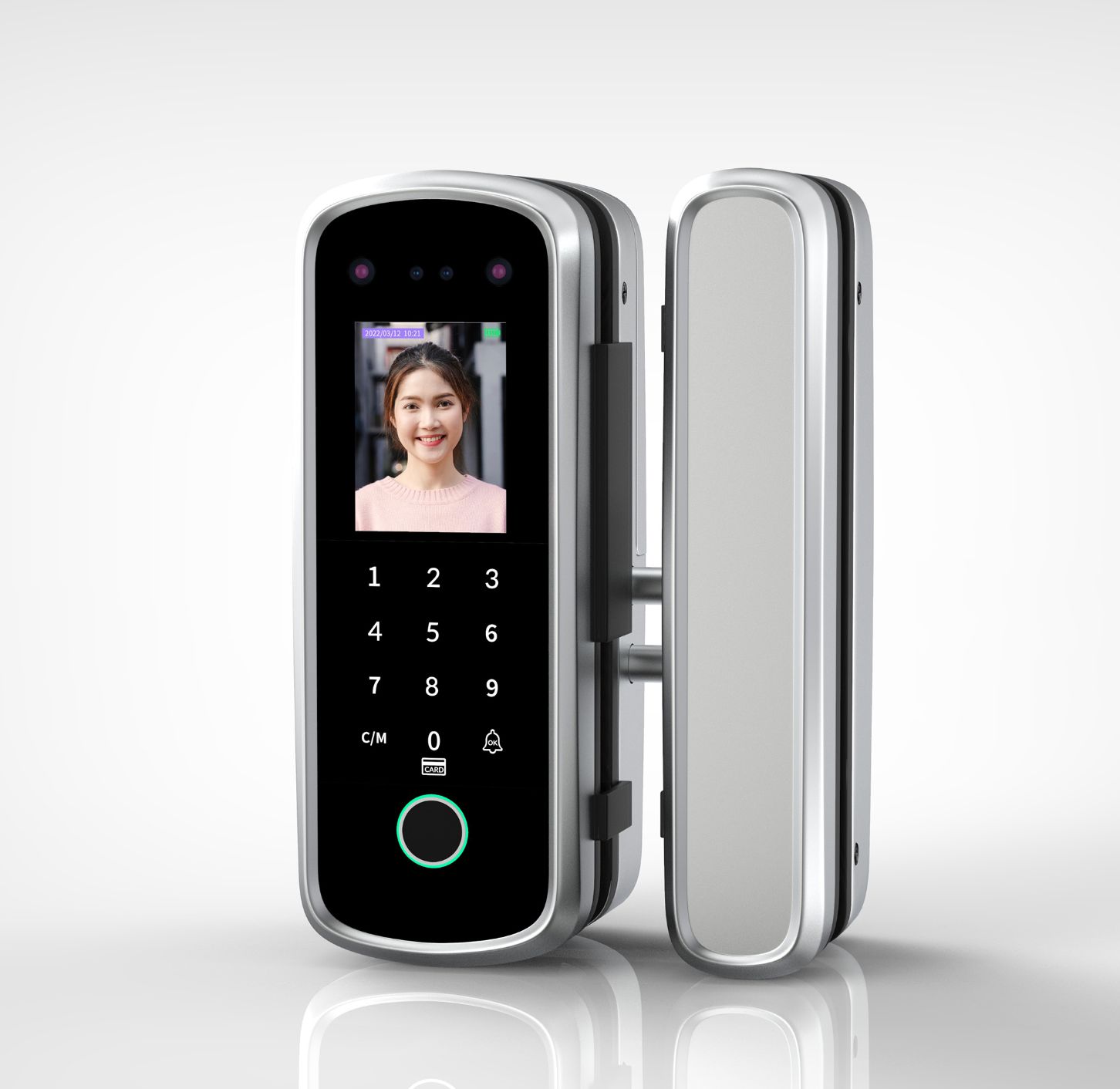

ouzim B20 front

Face Recognition

Palm Vein Recognition

Passwords Recognition

Fingerprint Recognition

Swiping Card

Remote Control

Mobile App

Attendance Report

Door Bell

Low Battery Alert

Auto Lock

Normal Open Mode

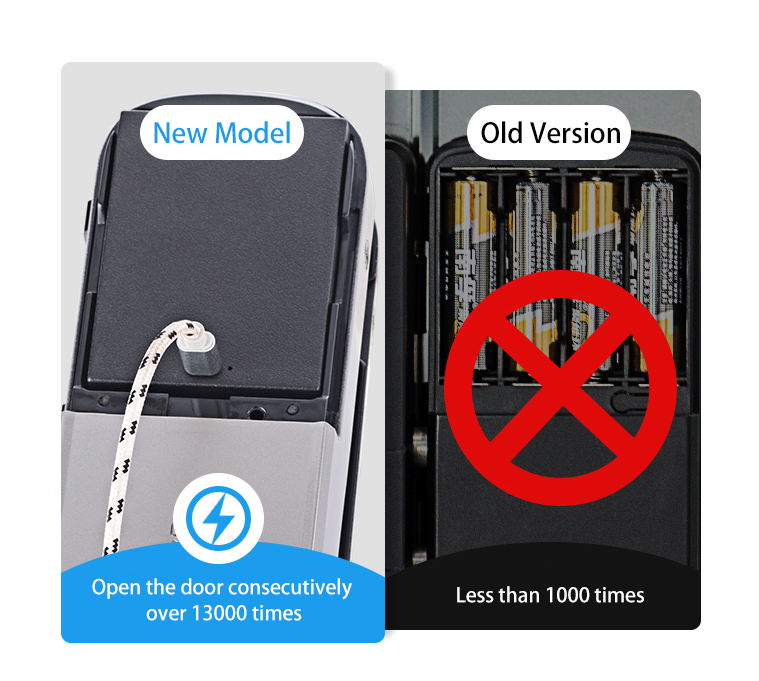

Long Shelf Life

The machine will alert with low battery, if it's indeed no battery, no need to worry, connect the powerbank to supply.

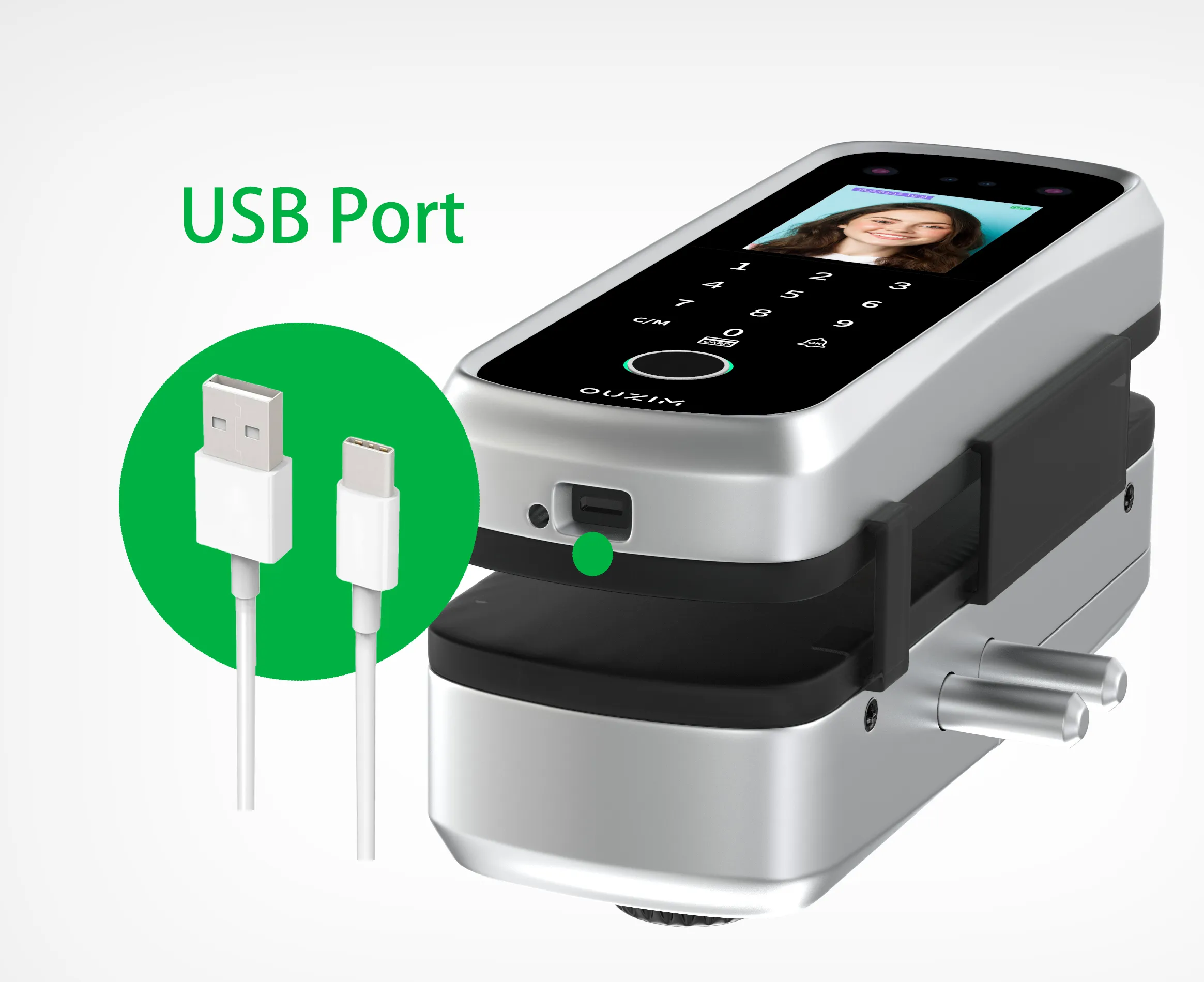

Emergency Power Supply

B20 can be temporarily charged by powerbank. (<55mA consumption, the battery is nearly one year)

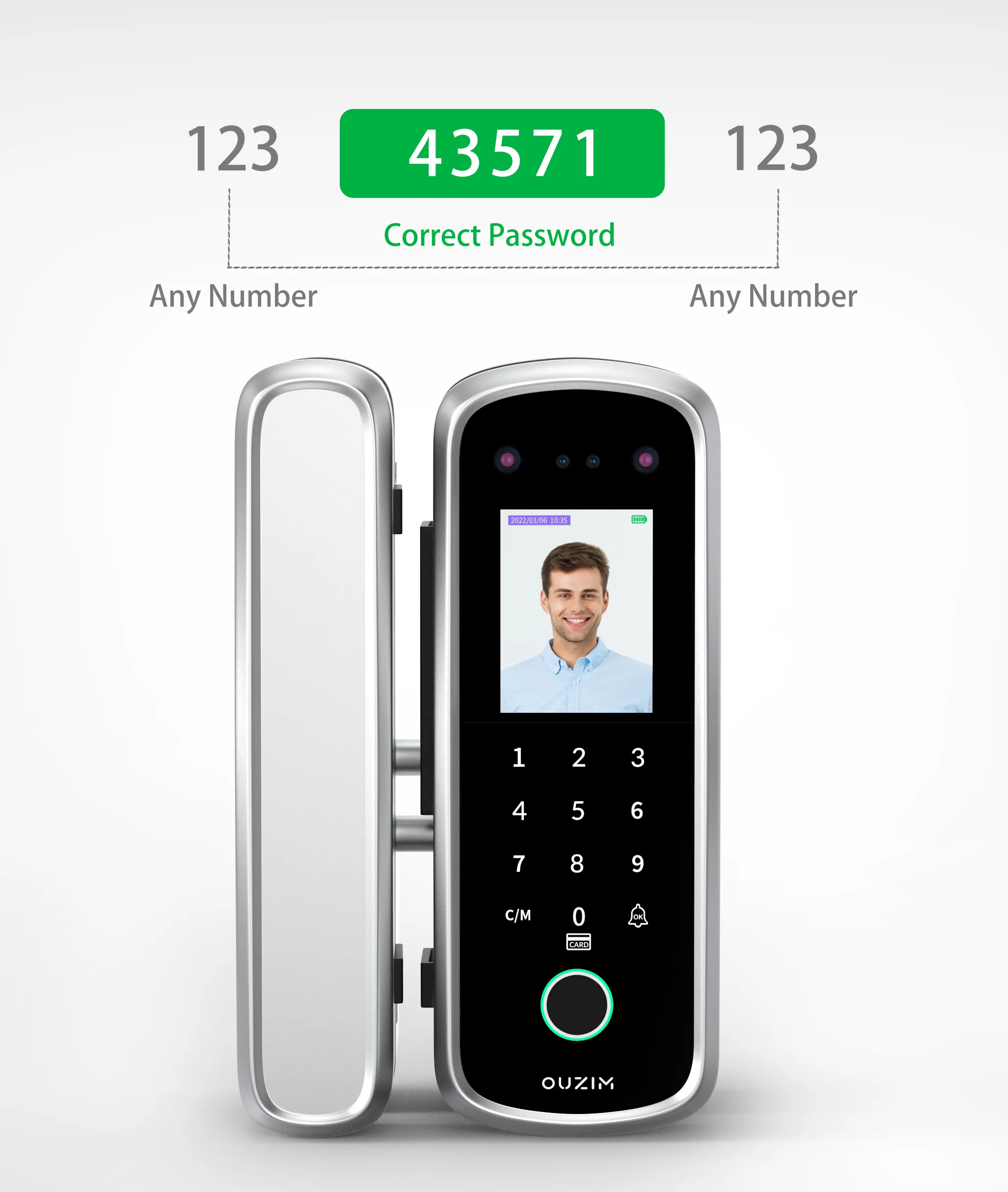

Decoy Pin Code

Entering random digits before or behind the correct digits to prevent peeping.
ouzim lockengine B20 decoy code

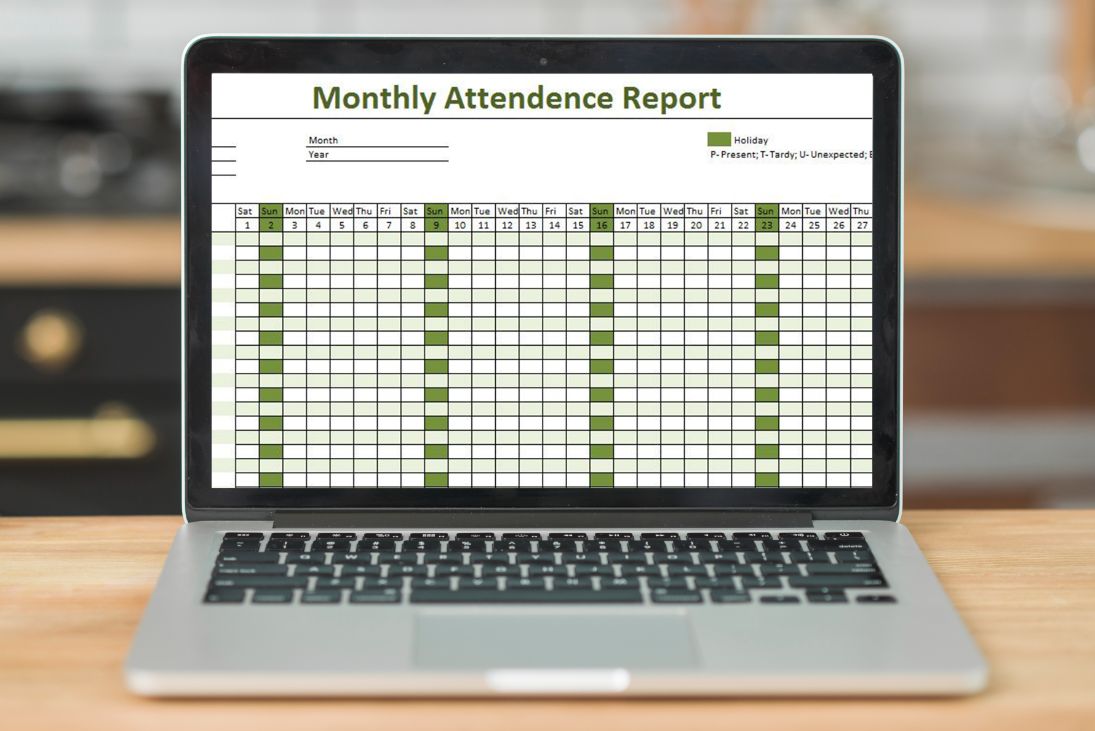

ouzim download attendance report (1)

Time Sheets Download

The attendance report is generated automatically without connecting Internet.

Tamper Detection

With patent rights, Industry leading. The B20 door lock will alarm if it is being tampered by intruder.

Tamper Detection

With patent rights, Industry leading. The B20 door lock will alarm if it is being tampered by intruder.

Specifications

Brand OUZIM
Model LockEngine B20
Product color Black with silver
Identification mode Face, fingerprint, card, passcode, palm vein, remote button(optional)
Max. users 200 users + 200 face + 100 fingerprint + 200 card + 200 password +200 palm vein
Emergency power supply USB port for power bank(5V)
Automatic door locking Support
Time attendance system Support
Doorbell Support
Alarm Card lock alarm, low battery alarm
Recording capacity 10,000
Support language English, other languages can be selected
Motor Clutch reduction motor
RAM 32M
Storage capacity 16M
Power supply Rechargeable lithium battery(7.4V 5000mAh)
Display 2.4 inch TN horizontal screen
Dimensions Main panel - 75(W)×210(L) mm; side panel - 40(W)×210(L) mm
Gross weight 1.5kg
Working temperature -10℃~55℃
Appearance ABS plastic shell + double cylinder lock tongue
Unlock times Over 20000 times
Camera Binocular 300,000
Functions LCD display/speaker voice/beep sound
Other functions One-key reset, one-key clear administrator
Installation conditions Glass door thickness 10-12mm, door seam 4-15mm
IR LED 850 Power, 1W IR LED*2

The Way to Open the Door

ouzim glass door lock a10 the way to open the door

Download

Demo Video

Related Products

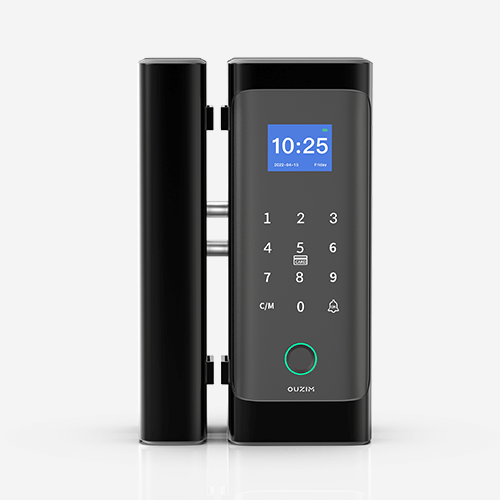

a10 related product
