FaceEngine T5

Face Recognition Temperature Measurement Multiply Recognition Types

Face

Card

Fingerprint

Password

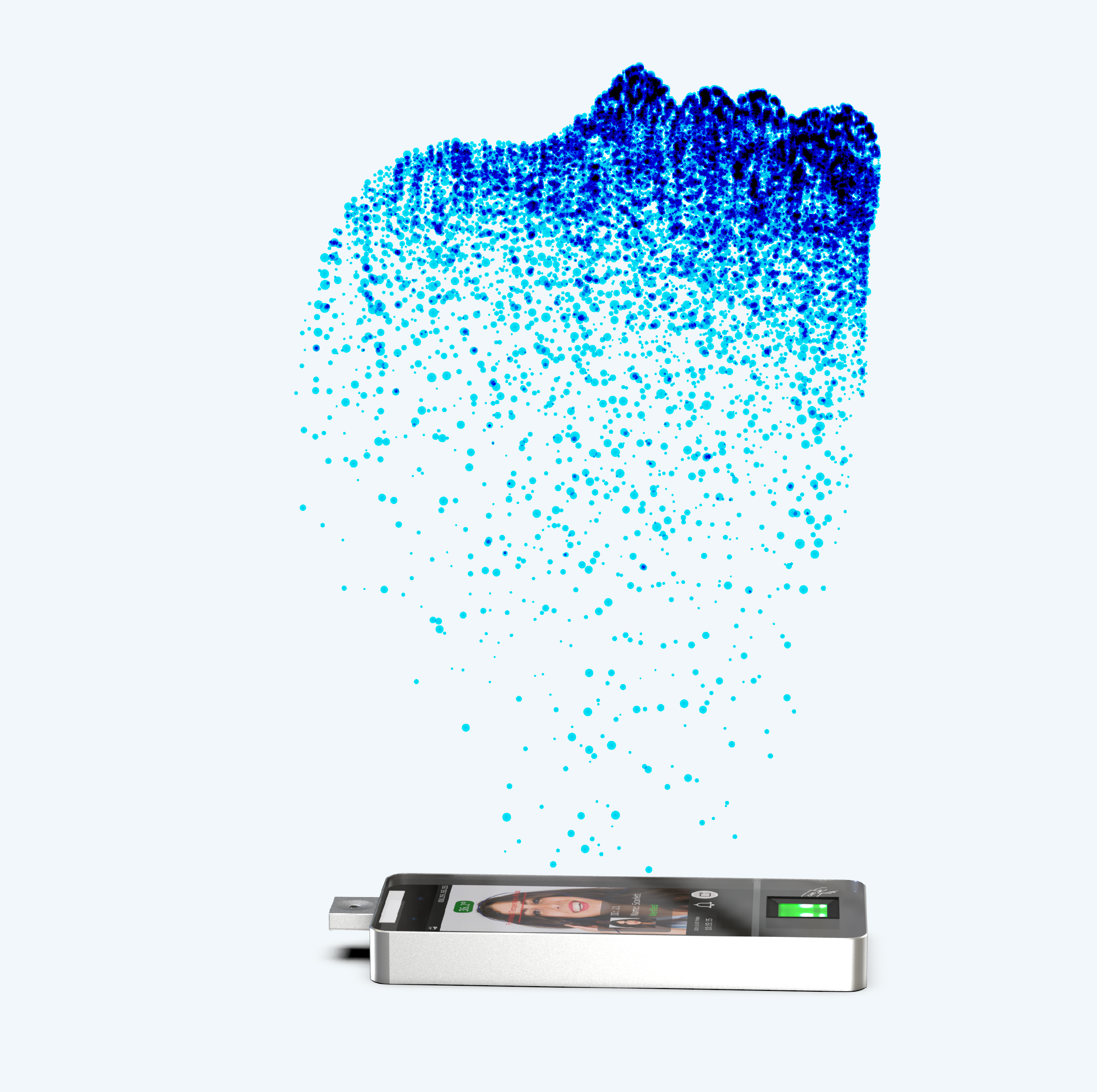

Face Recognition

1.2 GHz Dual Core CPU, 0.5~1M recognition distance with matching speed < 0.3s. Dynamic face recognition support remote user registered through profile photo uploads. Built-in IR and visual cameras, wide dynamic strong light suppression with 99.9% authentication accuracy.

10,000

Face Capcity

0.2S

recognition speed

2,000,000

pixels

0.5~1M

recognition distance

Adapt to Mutable Environment

T5 device can recognize facials under the complicated environment of the bright, dark and back lights by controlling infrared LED.

Temperature Measurement

Built-in infared temperature detection sensor, when FaceEngine T5 detects abnormal forehead temperature, the door will keep close while there is a voice prompt warning. Conversely, when detecting on normal temperature, the device will control the door open.

0.5~2 Meters temperature detection distance, 30℃~50℃ temperature range, ±≤ 0.2℃ temperature accuracy.

Liveness Detection

OUZIM adopt face liveness detection system to determine that the visitor is a physically present human being and not an inanimate picture or data.

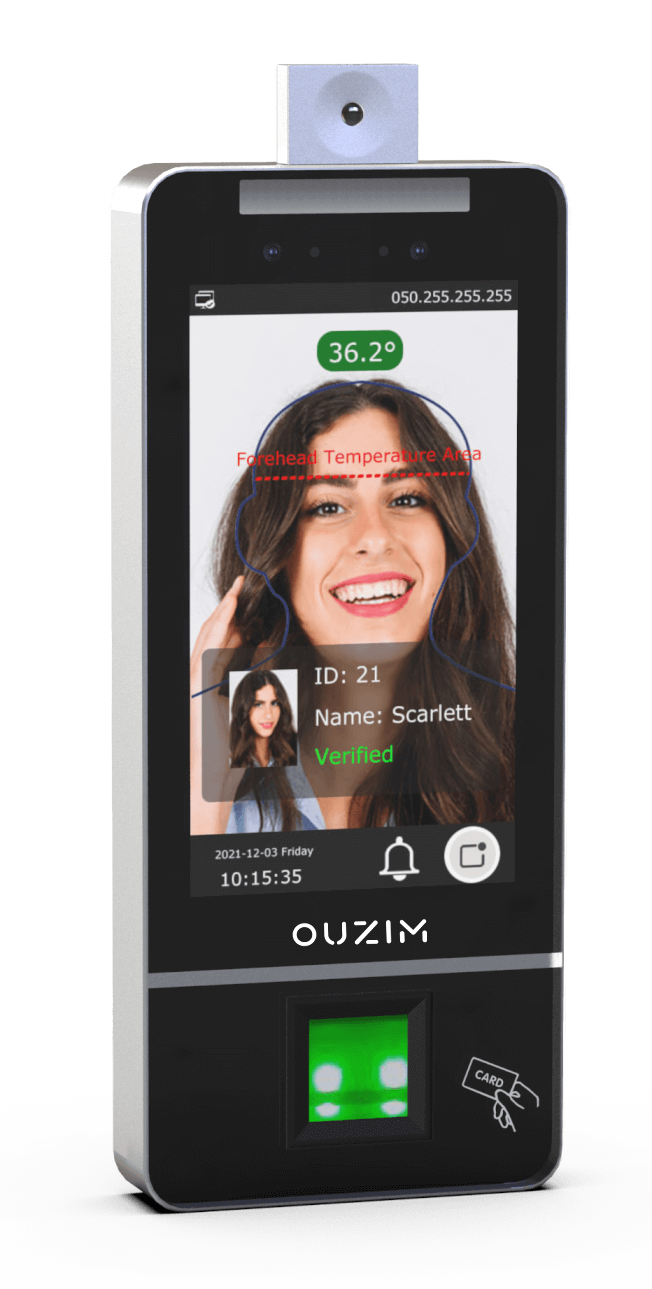

ouzim T5 live detection 3
T5 right detection

Real person fast recognize

Reject inanimate picture or video

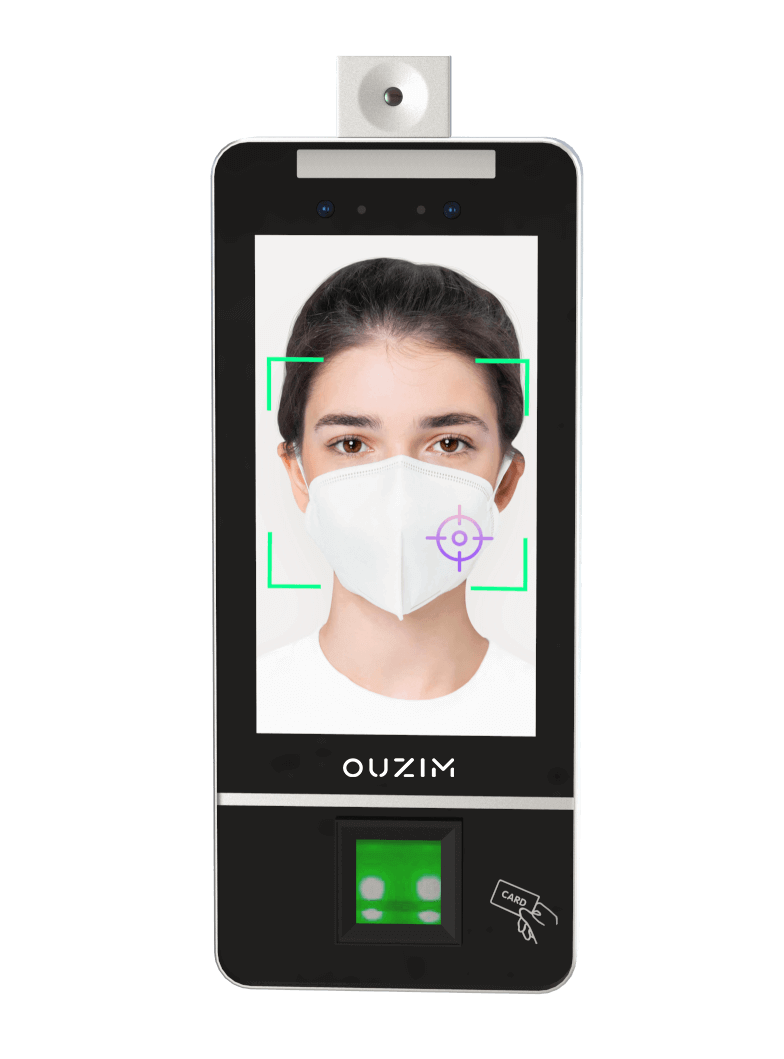

Mask Detection

FaceEngine T5 can fast detect people whether wearing a mask and remind to wear. If visitor no wear a mask, the device will not allowed entry, if visitor wear, it will allow them entry after verified.

Specifications

Brand OUZIM
Model FaceEngine T5
Product color Silver black
Identification mode Face / mask, fingerprint, card, passcode, temperature measurement
Max. users 10,000 face + 10,000 fingerprint + 10,000 card + 10,000 password
Communication method 13.56 MHz Mifare card (standard), 125KHz ID card (optional)
Face recognition distance 0.5-2M
Face recognition speed < 0.3s
Temperature detection distance 0.5-1M
Temperature range 30°C-50°C
Face recognition speed ± ≤0.2°C
Recording capacity 200,000
Capture records capacity 50,000
Support language English, other languages can be selected
Operation system LINUX
CPU Dual core 1.2GHz
Storage capacity 16G
Comparison method 1:1 or 1: N
Display 5" TFT capacitive touch screen resolution 720*1280
Dimensions (W x H x D) 86mm x 201mm x 22mm
Weight 500g
Working temperature -20°C~60°C (4°F~160°F)
Appearance Slim and elegant design
Performance 360-degree rotation identification
Camera Dual camera (VIS & NIR)
Functions LCD display / speaker voice / beep sound
Power input DC12V/2A (DC9V-14V)
Relay 1 relay out
Communication mode Support USB, Wi-Fi, TCP/IP
Wiegand One group of wiegand input / wiegand output (26/34)

Video

FaceEngine T5 Unpack and Install

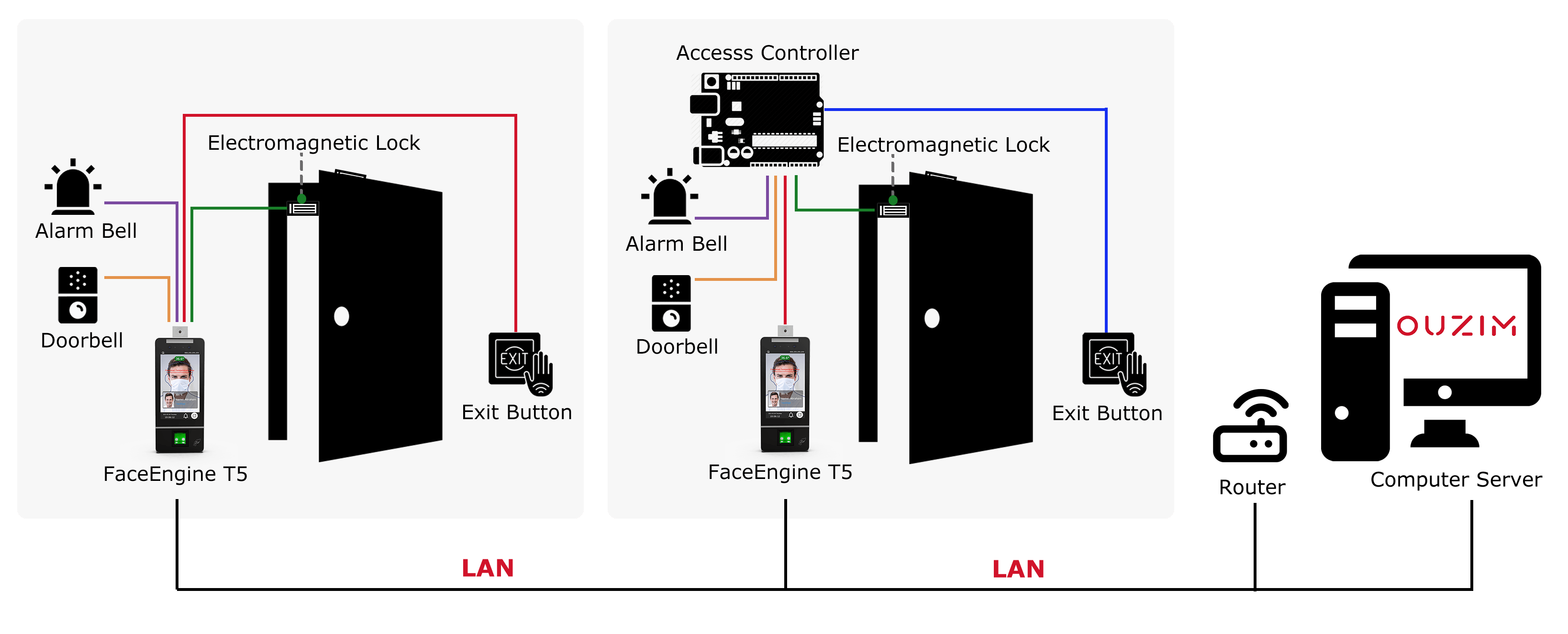

Configuration

ouzim System Configurations T5
