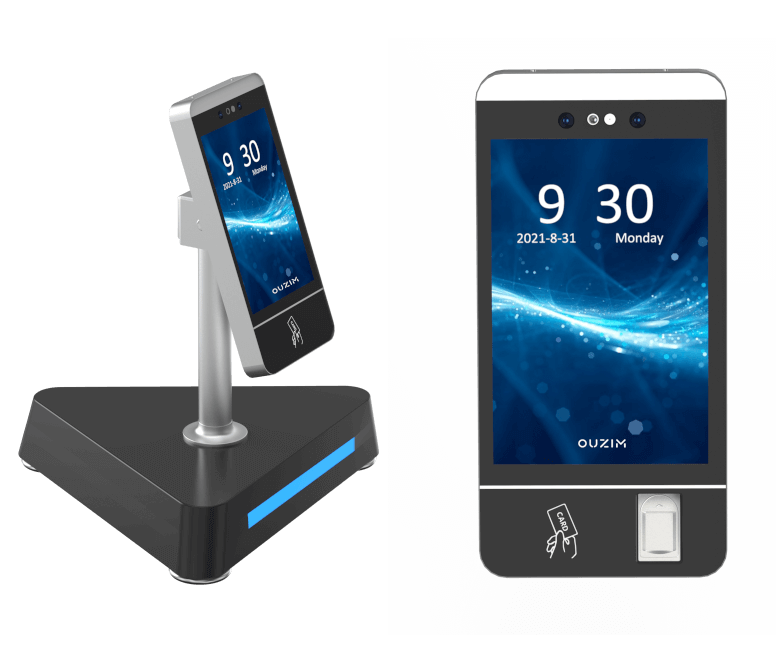

FaceEngine 8

OUZIM FaceEngine 8 is a smart face recognition terminal, offers a wide range of authentication multifunction: face, fingerprint, passcode and cards, mask identification, temperature detection. Dual core 1.2GHz  recognition distance up to 2M with matching speed < 0.3s and 5″ TFT capacitive touch screen resolution 720*1280.

Details

High Performance Dynamic Face Recognition

Well-developed Attendance Management System

Dust & Water Proof

FaceEngine 8 provides excellent ingress protection by virtue of its sturdy structure. The device provides excellent protection against intrusive moisture, dust and even liquids. No matter how harsh the environment, FaceEngine 8  is ideal for outdoor applications.

Dust & Water Proof

FaceEngine 8 provides excellent ingress protection by virtue of its sturdy structure. The device provides excellent protection against intrusive moisture, dust and even liquids. No matter how harsh the environment, FaceEngine 8  is ideal for outdoor applications.

Integrated Control

FaceEngine 8 can control entry and exit through integration with third-party devices. The user performs face recognition/fingerprint recognition/swiping card/password, and the access control system recognizes identity verification and authorization to provide complete protection and ensure the security of the system.

Expanded Capacity for More Users

FaceEngine 8’s large memory can sufficiently meet enterprise needs.
Its 16 GB Flash and 1.2GHz dual core can handle up to 200,000 users,
5 million text logs and 50,000 capture image.

50,000
USERS
200,000
TEXT LOGS
5000,000

Specifications

Brand OUZIM
Model FaceEngine 8
Identification mode Face(10,000)/ Fingerprint(10,000) / Card (10,000)/ Password (10,000)
Product color Silver black
Face recognition distance 0.5-2M
Recognition speed < 0.3s
Recording capacity 200,000
Support language English, other languages can be selected
Operation system LINUX
CPU Dual core 1.2GHz
Storage capacity 16G
Camera Dual camera( VIS & NIR )
Display 5" TFT capacitive touch screen resolution 720*1280
Dimensions (W x H x D) 275 mm *135 mm * 34.5 mm
Weight 450g
Working temperature -30°C~60°C (-22°F~160°F)
Anti-static electricity Touch: ≥6KV, space: ≥8KV
Group, time zone 24 Timezone, anti-passback
RFID technology 13.56 MHz Mifare card (standard), 125KHz ID card (optional)
Power input DC12V/2A (DC9V-14V)
Relay 1 relay out
Wiegand One group of wiegand input / wiegand output (26/34)

Configuration

Download
