BioEngine 3
- 1,000 face +10,000 fingerprints +500 palm vein +1,000 cards +10, 000 passcode
- Semiconductor fingerprint sensor
- 2.8 inches capacitive touch screen
- Built-in infrared + color dual high-definition camera
- Touch screen operation, offline and independent use
- Support U disk time and attendance card report output.

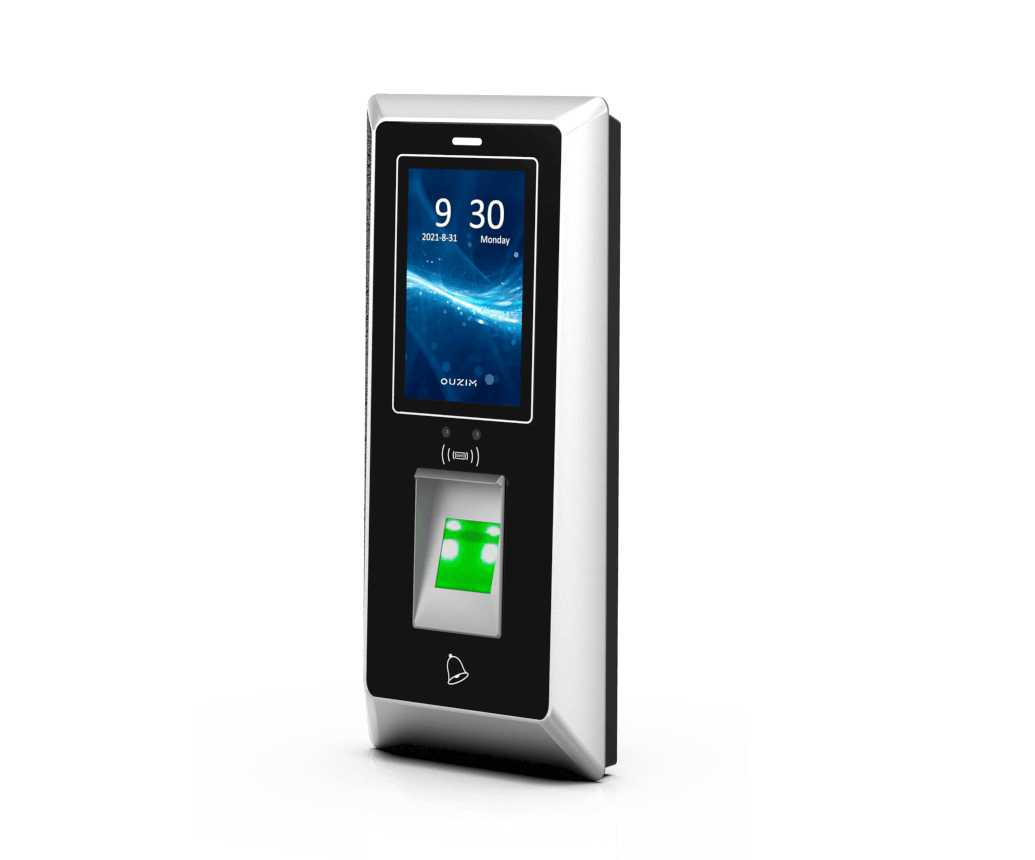

OUZIM BioEngine3 is a multifunctional fingerprint access control device featuring high performance and rapid recognition speed, dynamic living face recognition, biometric identification. BioEngine 3 provides class-leading performance and security with 2.8 inches capacitive touch screen
Details
High Performance Face Fingerprint Recognition
- High-performance CPU: 1G main frequency high-performance CPU, fast speed and good experience.
- Support multiple recognition: palm vein + face + fingerprint + card + password.
- Touch operation: touch screen operation, offline and independent use, no computer.
- Combination recognition: support multiple combination recognition.
- Live detection: binocular live body camera, prevent video and photo fraud.
- Powerful: with professional access control functions, support U disk, time and attendance, card report output.
Well-developed Attendance Management System
- With all access control professional functions, detailed excel report can be directly exported through U disk.
- Support touch-screen offline operation, PC-less, easy to use.
- Support flexible interface: RS232/RS485/TCPIP/Wiegand in&out
- Support multiple communication modes: U disk, TCP/IP, WIFI.
Palm Vein Recognition Technology
OUZIM’s newest generation of palm vein recognition technology has been fully upgraded in all aspects in terms of recognition methods, supports palm vein recognition.
- Palm Recognition
- Palm Print Recognition
- Palm Vein Recognition
Touch Screen Operation
BioEngine 3 supports advanced touch screen technology to make it easier and faster for users to use. OUZIM’s touch screen technology is the assembly of touch panels and display devices. The touch panel is overlaid on the electronic visual display in the processing system, and LCD display.
High-definition Imaging Face Recognition
BioEngine 3 supports dynamic face recognition and built-in infrared + color dual high-definition camera. When performing face recognition, the 2.8-inch capacitive touch screen will display your high-definition image.
2.8 inches LCD display high-definition with 300,000 pixels
Fast and accurate biometric face recognition
Specifications
| Brand | OUZIM |
| Model | BioEngine 3 |
| Identification mode | 1,000 Facial/ 10,000 Fingerprint/ 500 Palm Vein/ 1,000 Card/ 1,000 Password |
| Product color | Silver black |
| Communication method | USB, TCP/IP, IC+ ID card |
| Recognition speed | < 0.5s |
| Recording capacity | 200,000 |
| Support language | English, other languages can be selected |
| Operation system | LINUX |
| CPU | 1GHz |
| Storage capacity | 8G |
| Comparison method | 1:1 or 1: N |
| Display | 2.8 Inches capacitive touch screen |
| Dimensions (W x H x D) | 192mm x 82mm x 30mm |
| Weight | 450g |
| Working temperature | -10°C~45°C (37.5°F~113°F) |
| Appearance | Slim and elegant design |
| Performance | 360-degree rotation identification |
| Camera | Infrared + color dual high-definition camera-300,000 pixels |
| Functions | LCD display / speaker voice / beep sound |
| Power input | DC12V/2A (DC9V-14V) |
| Relay | 1 Relay out |
| Wiegand | One group of wiegand input / wiegand output (26/34) |

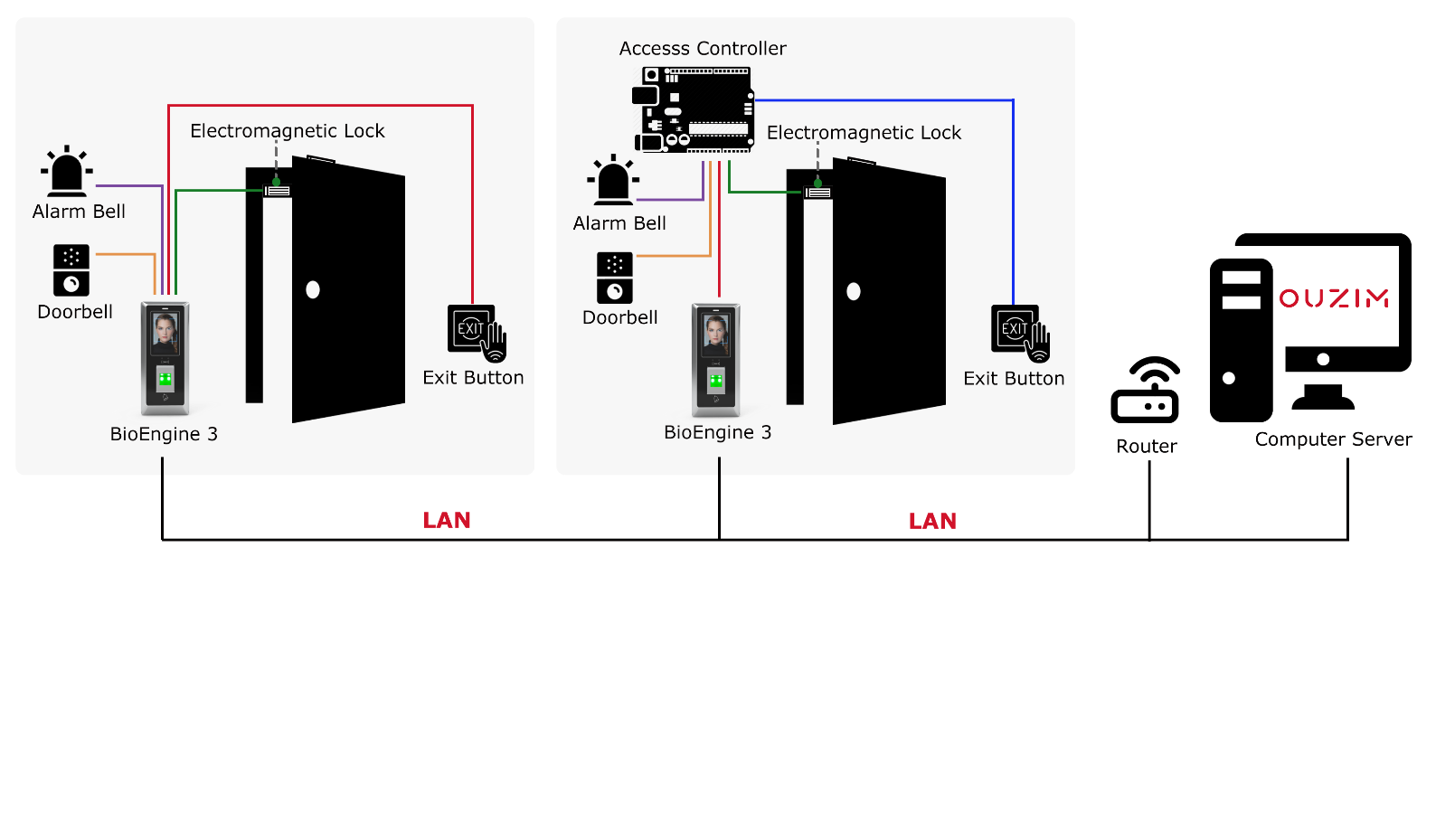

Configuration
Download
